  • Home > Product > Industrial Plant
  • Industrial Plant

  • Project : POSCO 1.5M Finex Plant

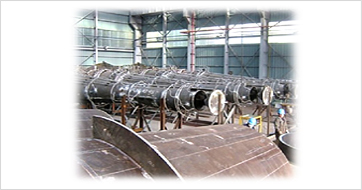

  • Equipment : Cyclone
  • Dimension : Φ2,140 x L18,502
  • Weight : 44.5 tons/ set
  • Material : A240-TP310S
  • Q'ty : 16 sets (Total : 712 ton)
  • Equipment : Reactor
  • Dimension : Φ14,700 x L24,750
  • Weight : 600 tons/ set
  • Material : SPV315-N
  • Q'ty : 4 sets (Total : 2400 ton)


  • Project : POSCO 1.5M Finex Plant
  • Equipment : DRI Feed Bin(sus310s Jacket Type)
  • Dimension : Φ5,000 x 11,000
  • Weight : 110 tons/ set
  • Material : A516-70(shell), sus310s (inside)
  • Q'ty : 2 sets (Total : 220 ton)

  • Project : POSCO #3/4 Combustion Crystal Utility

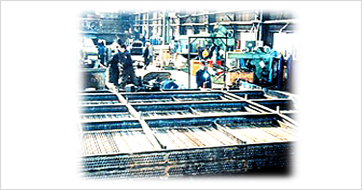

  • Equipment : Waste Heat Recovery
  • Dimension : 4,500 x 10,000 x 1,200
  • Material : STB340S (19Φ, 25.4Φ)
  • End User : POSCO


  • Project : POSCO NO.2 CDQ (H.H.I)

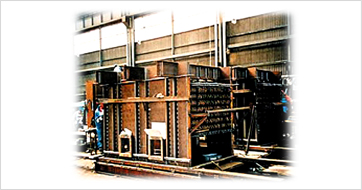

  • Equipment : Economizer
  • Dimension : 3.600 x 5,410 x 5,640
  • Material : STPG370S, A213-T91
  • End User : POSCO

  • Project : Hyundai Steel 1st integrated steel mill

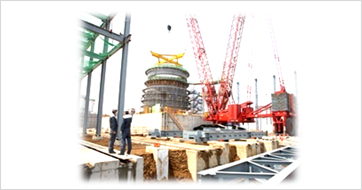

  • Equipment : Blast Furnace & Tower Structure (1 & 2 blast furnace)
  • Material : SM490C
  • Weight : Furnace – 3,000 tons, Tower Structure – 7,200 tons
  • End User : Hyundai Steel
  • SIZE : 90t x Φ20,000 x H50,000 (1,500 tons/ set)


  • Project : Proyecto Fenix Furnace Steel(Electrode)
  • Equipment : Electrode and Off Gas Seal
  • Material : SM490C
  • Weight : Furnace –436 tons
  • End User : CGN(GUATEMALA)
  • Package Item

  • Project : SNNC Capacity Expansion Project
  • Equipment : Submerged Arc Furnace Off Gas System(without SMS.S)
  • Material : EN material
  • Weight : Furnace – 1,500 tons, Off gas – 117 tons
  • End User : SNNC
  • Capacity : 30.000 ton
  • SIZE : 40m X 14m X 8.5m
